Use your wheelchair joystick for gaming and computer control

The WheelChair-Link is an accessory for the AMAneo MX that enables compatible powered wheelchairs with an integrated Bluetooth® interface to connect wirelessly. This allows the existing wheelchair joystick to be used for gaming and computer control.

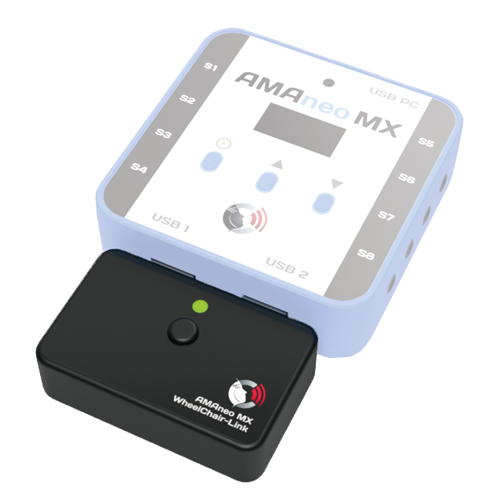

The WheelChair-Link plugs directly into the AMAneo MX and establishes a wireless connection to the powered wheelchair. Pairing is quick and easy with a single button press. Once paired, the wheelchair is stored and reconnects automatically whenever it is used again.

Applications

When used together with the AMAneo MX, the WheelChair-Link enables, among other things:

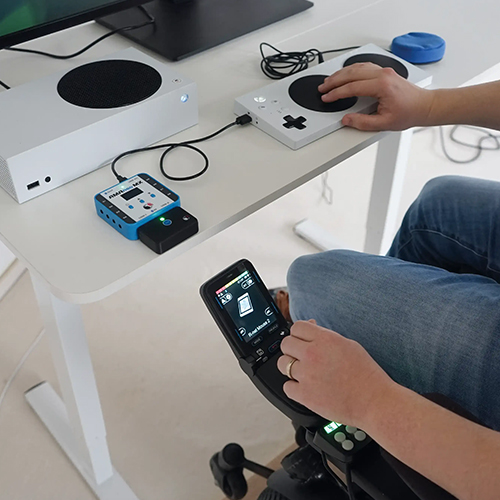

• Controlling an Xbox via an Xbox Adaptive Controller (XAC)
• Using a Nintendo Switch via a HORI Flex Controller
• Operating a PC with compatible applications and games

Key Features

• Connects compatible powered wheelchairs to the AMAneo MX
• Uses the existing wheelchair joystick as an input device
• Wireless Bluetooth® connection
• Plug-in module for the AMAneo MX
• Automatic reconnection after successful pairing
• Simple one-button setup
• Status LED indicating the connection status
• Compact design

Technical Specifications

Power supply: Via AMAneo MX

Compatibility: Compatible powered wheelchairs with an integrated Bluetooth® interface

Installation: Plug-in module that connects directly to the two USB-A ports of the AMAneo MX

Dimensions: 59.5 × 48.5 × 17 mm

Weight: 31 g

Package Contents

• WheelChair-Link for AMAneo MX
• Instructions for Use

Important Notes

AMAneo MX is not included.

The WheelChair-Link can only be used together with an AMAneo MX and requires a compatible powered wheelchair with an integrated Bluetooth® interface.

To use the WheelChair-Link with an Xbox, an Xbox Adaptive Controller (XAC) is required. To use it with a Nintendo Switch, a HORI Flex Controller is required. These products are not included and must be purchased separately.
